GT-3 Automatic triangle bag packing machine for granule or powder tea chocolate candy snack

GT-3 Automatic triangle bag packing machine for granule or powder tea chocolate candy snack
Product Description




What are the details of our JOYGOAL Automatic triangle bag packing machine?

Adopt an advanced microcomputer controller and step-by-step motor to drive and control the length of the bag with stable performance and accurate testing. Meanwhile, it is easy to operate.

The machine has functions including bag-making, weighing, filling, sealing, cutting, counting, printing batch number, and so on.

The packing shape is a unique triangle, pretty and fashionable.

The machine is suitable for the triangle bag solid packing of grain, powder, liquid, short strip, and slices, such as slices puffed food, shrimp strip, peanut, popcorn, oatmeal, melon seeds, flavoring and so on.


What are the technical parameters of our JOYGOAL Automatic triangle bag packing machine?

Name

Automatic triangle bag packing machine

Model

GT-3G

Bag Size

L:40-100 (mm)  W:40-90(mm)

Packing Speed

30-60 bag/min

Bag Cubage

5-120 ML

Power

220V/50HZ/1.5KW

Air Source

5-7Mpa

Air Consumption

0.25C/min

 Machine Weight

400KG

Outline Dimension

900mm×700mm×1700mm


1: The parameter above is only for reference, please make the object as the standard.

2: This is our smallest machine, according to your requirements, we can provide special design.

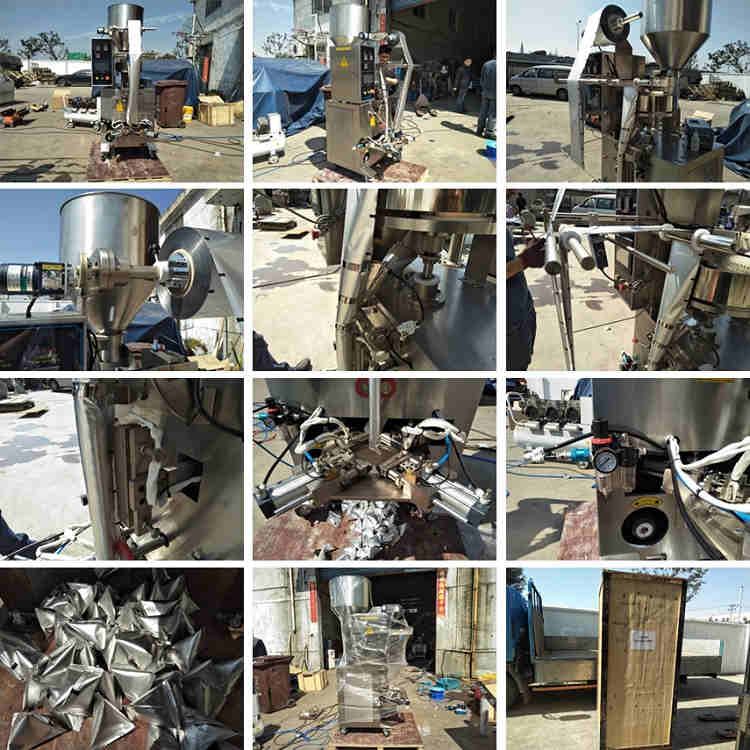

What are the appearances of JOYGOAL Automatic triangle bag packing machine?

What are the samples of JOYGOAL Automatic triangle bag packing machine?
